Firestopping systems play a key role in passive fire protection, but their performance depends on understanding the requirement behind each application. Reaction to fire and fire resistance are often used together in construction, yet they describe different aspects of fire safety. Knowing the difference helps you specify the right solutions for rated walls, floors, joints and service penetrations.
Reaction to fire and fire resistance: two different fire safety requirements
Reaction to fire and fire resistance are both used in construction fire safety, but they do not describe the same performance. Reaction to fire describes how a material behaves when exposed to flames: how easily it ignites, how much it contributes to fire development, the level of smoke it produces and whether burning droplets or particles occur.
Fire resistance describes how long a building element or firestop system can keep performing during a fire. In practice, this relates to walls, floors, construction joints and service penetrations that must help maintain compartmentation for a defined period.
A material can have a strong fire behaviour classification without being a firestop system. To protect an opening, joint or cable penetration, the full tested application must be considered.
What reaction to fire means in construction
Reaction to fire is used during material assessment and specification. It helps classify construction products according to their behaviour in direct fire exposure, before they are considered as part of a wider assembly.
For professionals, this is useful when reviewing materials that may be installed across large surfaces or repeated across a building, such as boards, insulation layers, membranes, coatings and some sealant applications. The classification gives a clearer view of how the chosen material may influence fire development at surface level.
This information supports product comparison, but it remains a material-level assessment. It does not describe how a wall, floor, joint or penetration will perform as a fire barrier once services, openings or movement gaps are introduced.
Fire behaviour classifications
In Europe, reaction to fire is commonly classified under EN 13501-1 1. The main classes run from A1 and A2 through to B, C, D, E and F 2. These classes indicate how a construction product reacts when exposed to fire, from non-combustible materials to products with lower or undetermined performance.
Additional letters give more detail. The smoke classification is shown as s1, s2 or s3 3, depending on the level of smoke development. Burning droplets or particles are classified as d0, d1 or d2 4. Together, these markings help you compare materials more clearly during specification.
For example, a product with a reaction-to-fire classification can support a safer material choice, but that classification alone does not define the performance of a complete firestop system.
| 1 EN 13501-1 |
2 A1, A2 |
3 s1, s2, s3 |
4 d0, d1, d2 |
|---|---|---|---|
|
European standard used to classify the reaction to fire of construction products. |
Highest reaction-to-fire classes under EN 13501-1, used for non-combustible or very limited-combustibility materials. |
Smoke development classes. s1 indicates the lowest smoke production, while s3 indicates the highest or unclassified smoke production. |
Burning droplets or particles classes. d0 means no burning droplets or particles, while d2 indicates higher or unclassified droplet production. |
What fire resistance means in a building
Fire resistance describes the ability of a building element or tested system to maintain its function during a fire for a defined period. This time is usually expressed in minutes, such as 30, 60, 120 or 240 minutes, depending on the tested application and the project requirement.
In passive fire protection, fire resistance is linked to compartmentation. Rated walls and floors are designed to slow the spread of fire, heat and smoke from one area of a building to another. This function only remains reliable when joints, gaps and service penetrations are sealed with suitable firestop systems.

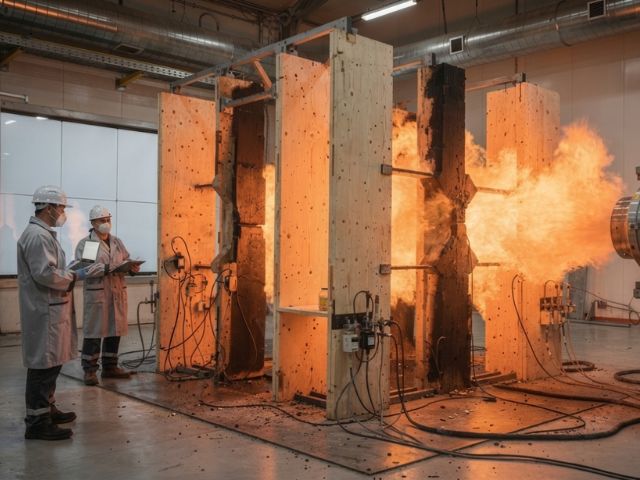

Unlike reaction to fire, fire resistance is not assessed on the material alone. It depends on the complete construction detail: the wall or floor type, the opening size, the services passing through it, the seal depth, the installation method and the approved test evidence.
Why reaction to fire does not prove fire resistance
A reaction-to-fire class is not a fire rating for a wall, floor or penetration. It only describes how the product behaves when exposed to fire as a material.
Fire resistance is proven through a tested construction detail. The same product can perform differently depending on the substrate, joint width, opening size, service type and installation method. For example, a seal around cable penetrations in a concrete floor is not the same application as a seal around electrical boxes in a partition wall.
This is why firestop systems must be selected from tested and certified applications, not from material classification alone.
How fire compartments rely on rated walls, floors and seals
Fire compartments are designed to keep fire, heat and smoke within a defined area for a set time. Rated walls and floors form the main structure of this compartmentation, but they are rarely continuous surfaces. In real buildings, they are interrupted by construction joints, movement joints, cable penetrations, pipes and electrical services.
Each opening can reduce the performance of the compartment if it is not sealed correctly. For example, a fire rated wall only keeps its intended role when the joints around it and the services passing through it are protected with a tested firestop system.
This is why passive fire protection looks at the full detail. The seal around the opening must match the required rating and the construction type.
Where firestop systems are used in passive fire protection
Firestop systems are used wherever a fire-resistant element is interrupted. This includes linear joints between walls, floors, ceilings and frames, as well as openings created for cables, pipes, cable trays and other building services.
For linear joints, the aim is to maintain the fire resistance of the compartment while allowing for the type of joint being sealed. Some joints are static, while others need to accommodate movement between building elements. These applications are tested under EN 1366-4 5.
For penetration seals, the focus is on the services passing through rated walls floors. A cable bundle, plastic pipe, metal pipe or insulated pipe will not react to fire in the same way. Each service type needs a compatible firestop system designed for that detail. These applications are tested under EN 1366-3 6.
|
5 EN 1366-4 |
6 EN 1366-3 |
|---|---|
|
European test standard for fire resistance of linear joint seals, such as joints between walls, floors and other building elements. |
European test standard for fire resistance of penetration seals, such as openings around cables, pipes and service installations. |
The role of intumescent technology in firestop solutions
Intumescent technology is used in several firestop solutions to help close openings during a fire. When exposed to heat, the material expands and helps fill spaces that may appear when combustible pipes, insulation or service components lose their shape.

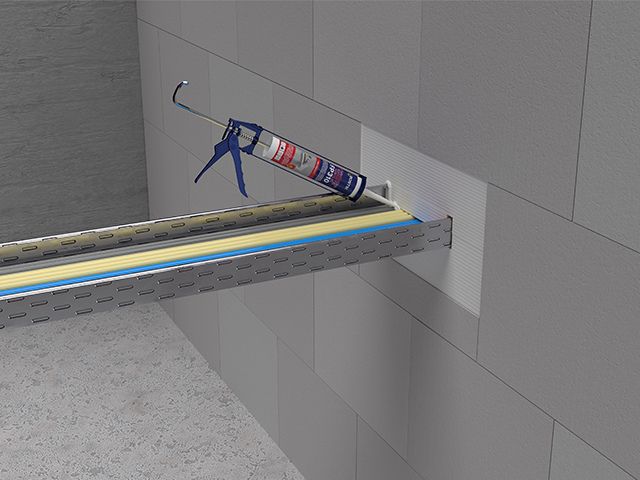

This expansion is useful around service penetrations, where gaps can become paths for fire smoke to spread. Intumescent firestop sealant, pipe wrap, firestop collars and electrical box inserts are examples of solutions designed to react under heat and help restore the barrier.
The choice of intumescent firestop system depends on the detail being protected. A plastic pipe, cable penetration or electrical box does not create the same risk, so each application needs a tested solution.
How to select a firestop system for the right application
Select a firestop system by first checking the construction detail. The wall or floor type, joint width, opening size, service type and required fire rating all guide the choice. A 60 minute detail and a 240 minute detail can require different products or product combinations.

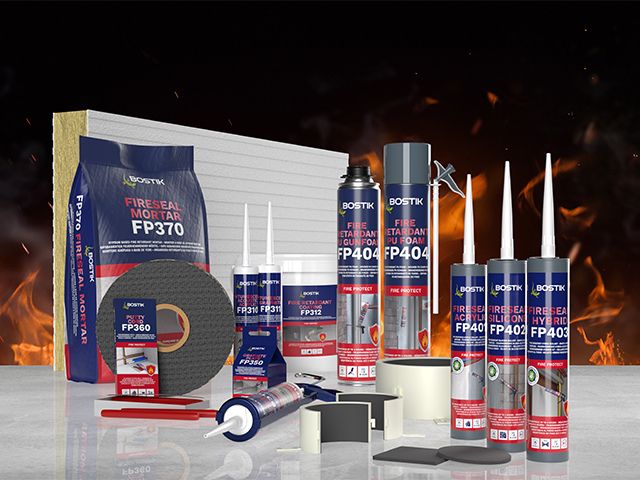

The Bostik Fire Protect range covers linear joints tested under EN 1366-4 and service penetrations tested under EN 1366-3. For linear joints, the range includes FP401 Fireseal Acrylic, FP402 Fireseal Silicone, FP403 Fireseal Hybrid and FP404 Fire Retardant PU Foam. These solutions can support connection joints, movement joints and openings between fire compartments.
For penetration seals, the range includes FP310 Intumescent Acoustic Acrylic, FP311 Intumescent Graphite, FP312 Fire Retardant Coating, FP320 Fire Batt, FP330 Pipe Collar, FP340 Pipe Wrap, FP350 Graphite Plate, FP360 Putty Cord and FP370 Fireseal Mortar. These products help protect openings around cables, pipes, pipe insulation, electrical boxes and mixed service penetrations.
Check the certification against the exact application. ETA documents, CE marking, classification reports and installation instructions confirm the approved use, required fire rating and installation conditions. This step helps professionals choose a system that matches the project detail.
Correct application also affects performance. You must follow the tested design for seal depth, backing material, product combination and substrate preparation. A firestop system remains reliable when the specified solution matches the site condition and the approved application.
Building safer fire protection through tested systems
Reaction to fire and fire resistance work together in passive fire protection, but they are not interchangeable. One helps assess how a material behaves when exposed to fire. The other confirms how a tested system performs within a specific building detail.
For firestopping systems, this difference guides better decisions from specification to installation. A reliable fire barrier depends on the right classification, the right tested application and careful execution on site. When rated walls, floors, joints and penetrations are treated as a complete system, fire protection becomes more consistent and easier to verify.
For more practical guidance, technical resources and training on passive fire protection applications, you can refer to Bostik Academy.
